Nightshade MNV PVS-14 Gen 2+ with Helmet Mount
Nightshade MNV PVS-14: The Ultimate Night Vision Monocular
Experience unmatched performance with the Nightshade MNV PVS-14, the pinnacle of night vision technology. Built on the reliable PVS-14 platform, this top-tier monocular features a state-of-the-art 2000FOM tube with an impressive 28.5 SNR rating and autogated technology, delivering unparalleled clarity, durability, and protection in any lighting conditions. Unlike other premium devices, the Nightshade MNV PVS-14 comes standard with a J-arm and helmet mount included at no extra cost, ensuring hands-free operation right out of the box.

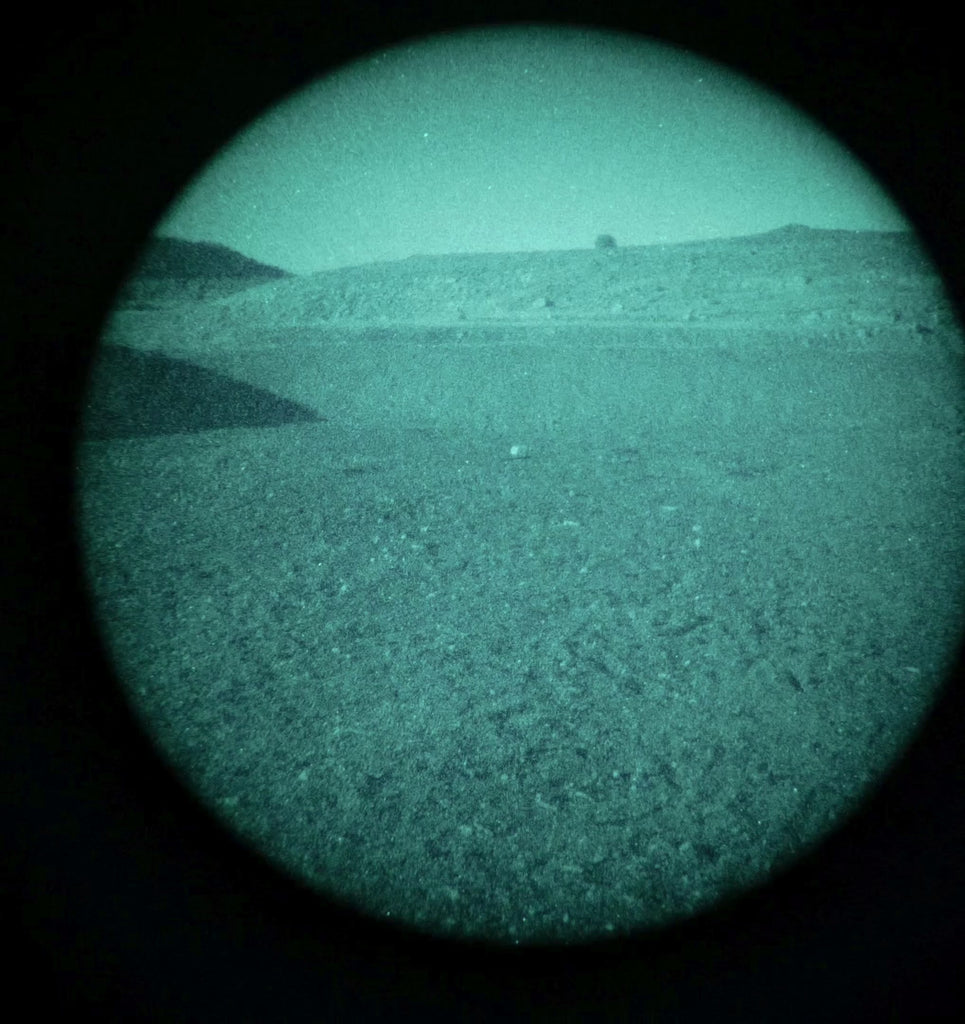

See our video in slide two to see what our White Phosphor tubes look like. The tube is the video specs out at 1509FOM and 23.5 SNR.
ITAR Compliance Notice:
This product is subject to the International Traffic in Arms Regulations (ITAR) and may not be exported, transferred, or shared with foreign nationals without prior approval from the U.S. Department of State. Unauthorized export or disclosure is a violation of federal law and can result in severe civil and criminal penalties. For more information, please consult the ITAR regulations or contact our compliance team.
Key Features
-
Elite Optics and Imaging
- Powered by a 2000FOM tube with a 28.5 Signal-to-Noise Ratio (SNR) for superior image quality.
- Autogated Technology: Automatically protects the tube from damage caused by sudden bright light exposure.
- 1X magnification with a 40° field of view (FOV) for maximum situational awareness.
- Multi-coated lenses (FMC) for enhanced durability and light transmission.
-
Built for Tactical Excellence
- Includes J-arm and helmet mount standard, providing seamless hands-free usability without hidden costs.
- Solid rugged polymer body alloy body with an IP67 waterproof rating, ready for any mission.
- Compact and lightweight design, weighing only 265g (without battery).
-
Smart and Efficient Design
- Auto shut-off/on when flipped up or down, conserving power when not in use.
- Infrared (IR) illuminator and manual gain control allow adaptability in complete darkness or changing environments.
- Intuitive controls with ON/IR/GAIN modes for ease of operation.
-
Enhanced User Experience
- Ergonomic 30mm eyepiece for a comfortable viewing experience.
- Diopter adjustment range of -6 to +2 for personalized focus.
- Long-lasting battery life with up to 40 hours of continuous operation using a single AA battery.
Technical Specifications
- FOM: 2000
- Signal to Noise Ratio: 28.5
- Magnification: 1X
- Field of View: 40°
- Eyepiece Diameter: 30mm
- Optical Aperture: F1.2, 25mm
- Focus Range: 0.25m – ∞
- Diopter Adjustment: -6 to +2 SD
- Power Supply: 1.2–1.5V AA battery
- Battery Life: Up to 40 hours
- Weight: 265g (without battery)
- Environmental Rating: IP67 waterproof
Why Choose the Nightshade MNV PVS-14?
The Nightshade MNV PVS-14 redefines what a premium night vision monocular should be. With its 2000FOM tube, 28.5 SNR rating, and autogated technology, this device ensures unparalleled clarity and protection, even in rapidly changing lighting conditions. What sets it apart is the inclusion of a J-arm and helmet mount at no additional cost, ensuring a hands-free, mission-ready experience straight out of the box.
Built to withstand the most demanding environments, the Nightshade MNV PVS-14 is the ultimate choice for tactical professionals, enthusiasts, and anyone who refuses to compromise on quality.
Elite. Durable. Ready for Action.
General Tube Parameters
| Parameter | Measured Value | Unit | Description |
| Signal-to-Noise Ratio (SNR) | 28.47 | — | Ratio of useful image signal to noise in low-light conditions. |
| Figure of Merit (FOM) | 2,000 | — | Calculated as Resolution (Lp/mm) × SNR: 72 × 28.47 ≈ 2000. |
| Cathode Sensitivity (2856K) | 1,000 | μA/lm | Sensitivity to visible light at a standard color temperature. |
| Radiant Sensitivity (800nm) | 91 | mA/W | Efficiency in converting infrared light at 800nm into electrical current. |
| Radiant Sensitivity (850nm) | 78 | mA/W | Efficiency in converting infrared light at 850nm into electrical current. |
| Max. Output Brightness | 6.26 | cd/m² | Maximum brightness of the display screen. |
| Luminance Gain | 10,900 | cd/m²/Lx | Amplification capability of the image intensifier under low light. |
| Resolution (Center) | 72 | Lp/mm | Ability to resolve fine details in the center of the image. |
| Resolution (Peripheral) | 72 | Lp/mm | Ability to resolve fine details at the edges of the image. |
| M∙T∙F (2.5 Lp/mm) | 92 | % | Clarity of the image at 2.5 line pairs per millimeter. |
| M∙T∙F (7.5 Lp/mm) | 73 | % | Clarity of the image at 7.5 line pairs per millimeter. |
| M∙T∙F (15 Lp/mm) | 54 | % | Clarity of the image at 15 line pairs per millimeter. |
| M∙T∙F (25 Lp/mm) | 32 | % | Clarity of the image at 25 line pairs per millimeter. |
| Operational Life | 10,000 | h | Expected lifespan of the image intensifier tube. |
| Uniformity | 1.3 | — | Brightness consistency across the entire image field. |
BIGHORN Ballistic Helmet
Combat Defense Industries brings you the BIGHORN™ Ballistic Helmet — a lightweight, high-performance helmet built for tactical operations, law enforcement, and personal protection. Serious Protection. Lightweight Comfort. Mission-Ready.
- NIJ Level IIIA Tested – Stops threats up to .44 Magnum
- Fragmentation Resistant – V50 rating over 2300 ft/sec
- Blunt Impact Protection – Tested to AR/PD 10-02 military standards
- Lightweight Aramid Shell – Durable, comfortable for long missions
- ARC-Compatible Side Rails – Ready for lights, comms, or mask accessories
- Modular Two-Piece Shroud – Nylon + Billet Aluminum; Dual bungee NVG-ready
- Fully Adjustable Fit – Dial retention system + easy-adjust chin strap
- Multiple Sizes – Secure, customizable fit for most head shapes
- Tested by Element U.S. Space & Defense – Reliable performance verified
Whether you're in the military, law enforcement, or a civilian , the BIGHORN™ is the perfect balance of protection, comfort, and value. Lightweight enough for extended use, tough enough for the mission.
| Specification | Medium | Large | Extra Large |
|---|---|---|---|
| 📏 Circumference | 20.8–22.64 in 530–575 mm |
21.65–23.22 in 550–590 mm |
22.44–24.40 in 570–620 mm |
| 📐 Length | 8.15 in 207 mm |
8.46 in 215 mm |
8.66 in 220 mm |
| ↔ Width | 6.14–6.61 in 156–168 mm |
6.49–7.08 in 165–180 mm |
6.77–7.48 in 172–190 mm |
| 🎛 Chinstrap Length | 8.07–10.83 in 205–275 mm |
8.46–11.41 in 215–290 mm |
8.86–12 in 225–305 mm |
| ⚖ Weight (Complete) | 3.1 lbs 1406.14 g |
3.3 lbs 1496.85 g |
3.6 lbs 1632.93 g |
